Description

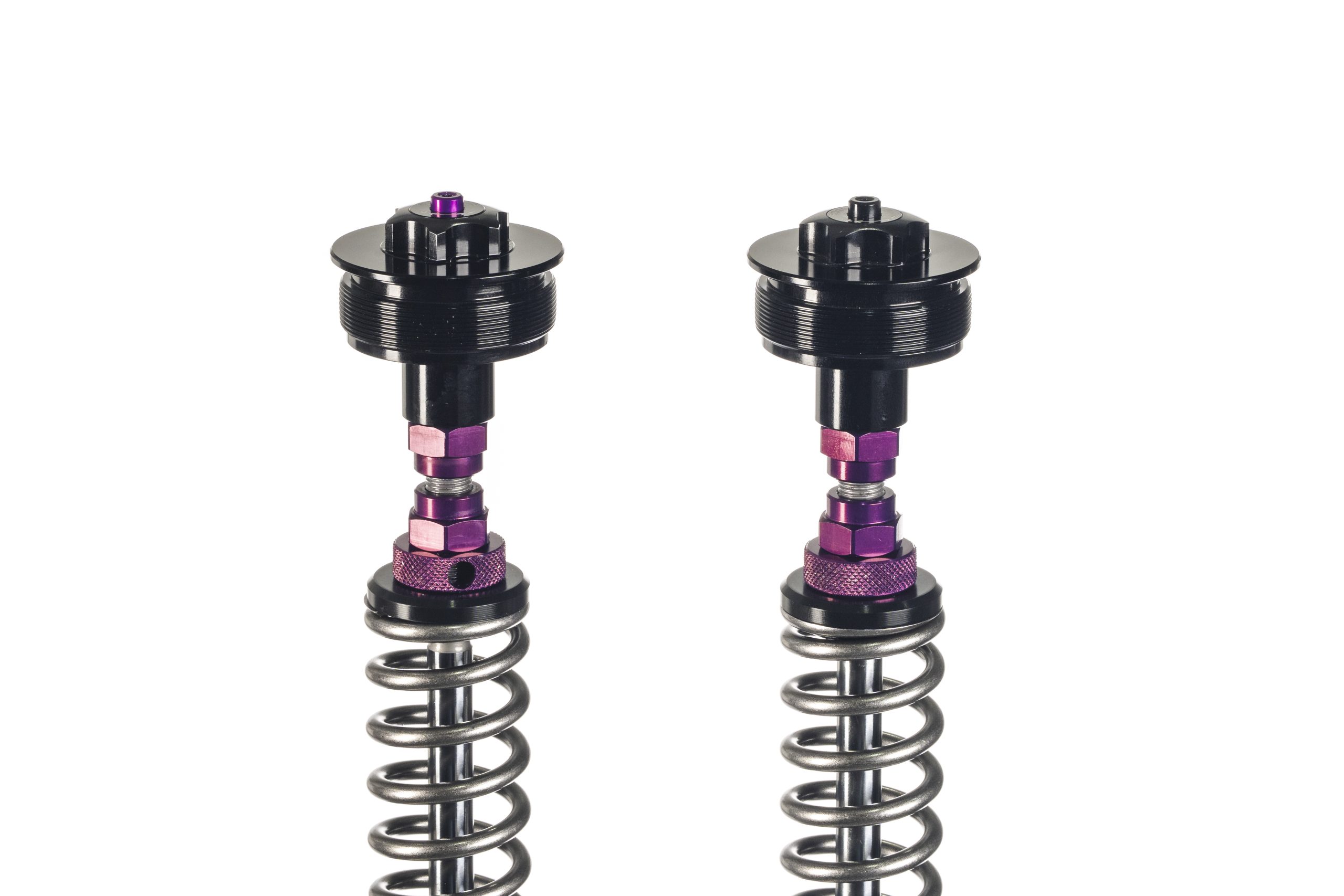

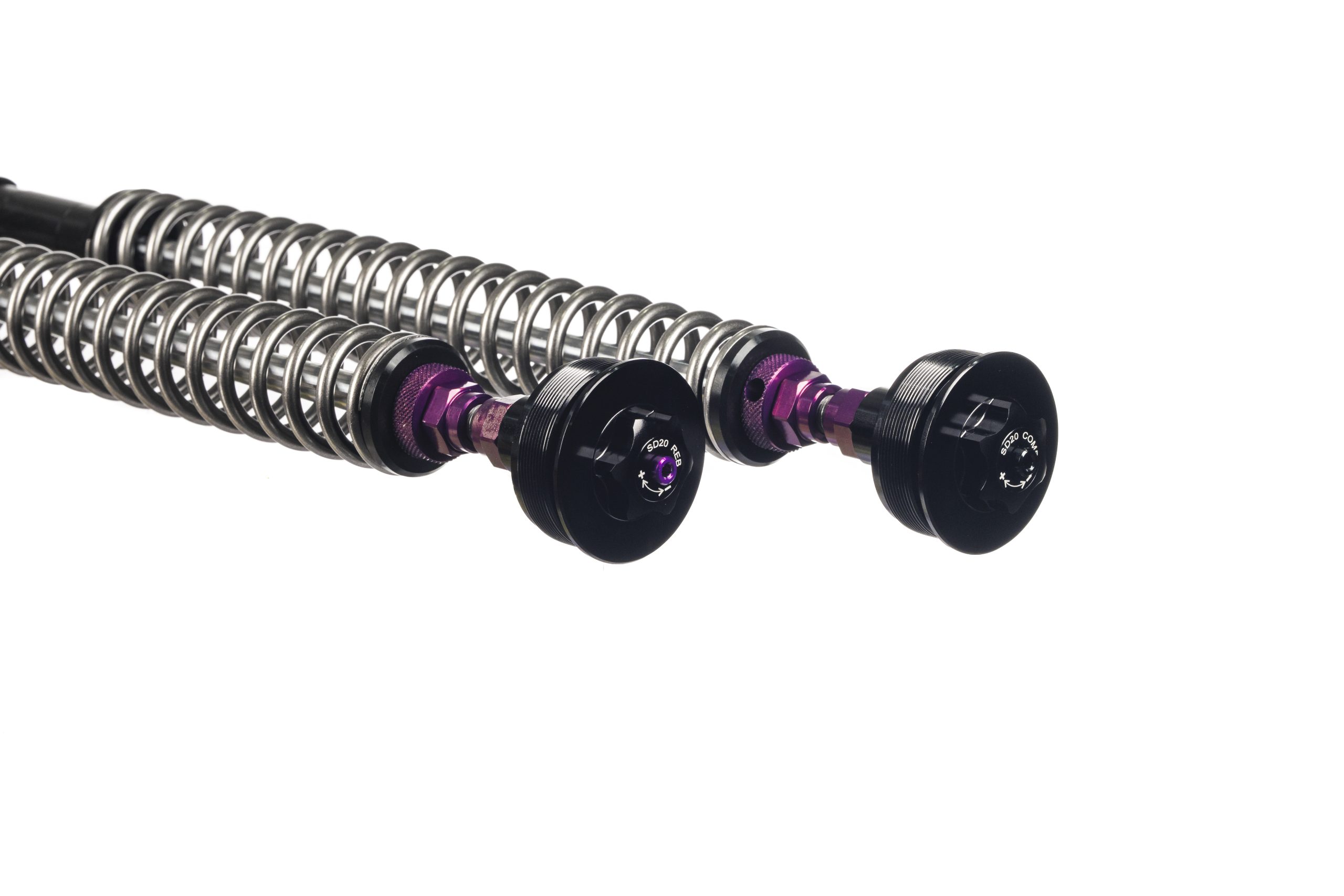

Upgrade your motorcycle's front suspension with the SD20 fork cartridges, a high-performance Separate Damping System built for bikes requiring enhanced damping control.
Designed as a smaller-volume alternative to the SD25, the SD20 separates damping duties entirely between the fork legs—placing rebound damping in the right leg and compression damping in the left leg. This split layout maximizes oil flow efficiency around fewer orifices, delivering a significantly faster, more responsive damping transition when switching between compression and rebound.
The SD20 cartridges were created for modern bikes that required lighter damping than the SD25 cartridges could provide. The size of the piston dictates the amount of damping the cartridge has. In some installations the 25mm piston had too much damping, causing a hard ride. The 20mm piston provides a lighter damping action, and when combined with the F4 fork tops, makes the cartridges adjustable.

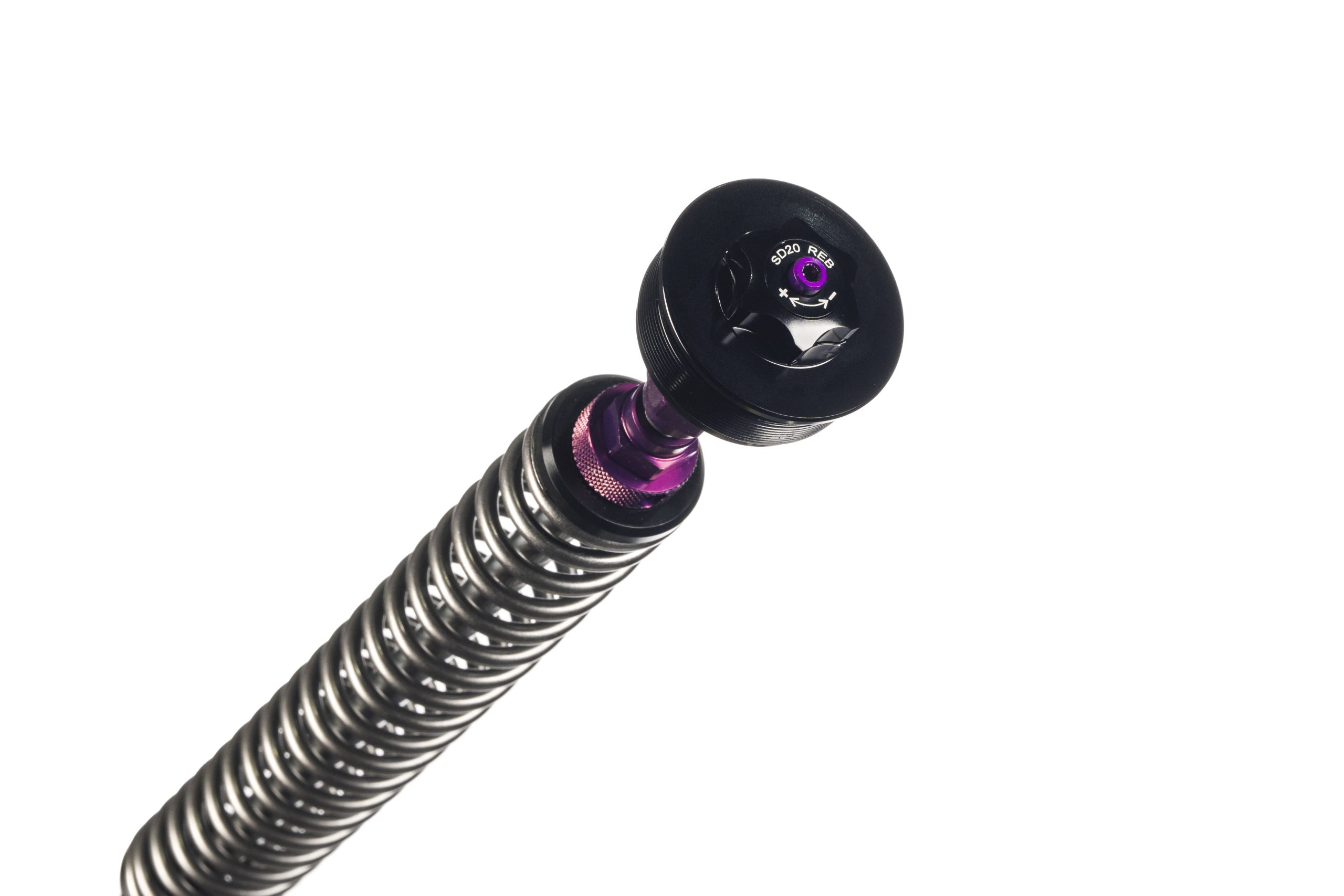

The F4 tops were created to reduce the cost compared to the fully adjustable F3 tops. They are separately adjustable for rebound damping and compression damping. There are 20 clicks of adjustment in each. Preload adjustment on F4 fork caps is handled internally via a knurled wheel beneath the fork cap.
The designs of the SD20 and SD25 cartridges are basically the same, apart from the diameter of the piston.
Key Features & Specifications
• Separate Damping System (SDS): Isolates rebound in the right leg and compression in the left leg for superior oil flow efficiency.
• 20mm Piston Design: Bigger piston design for improved damping performance.
• 10mm Diameter Low-Friction Damper Rods: Hard-chromed and polished rods provide an ultra-smooth finish to optimize low-speed fork action.
• Top-Mounted Adjusters: Both rebound and compression adjusters are conveniently located on top of the fork legs, featuring 25 precise clicks for easy, confident tuning.
• Bespoke Silicon Chrome Springs: Custom-matched springs are installed in both legs, tailored specifically to your bike and individual rider weight.
• Durable Alloy Construction: Precision-machined from robust 6082 T6 and 7075 T6 alloys, then hard-anodized to protect sliding components and extend service life.
• Custom-Built to Order: Every kit is individually assembled at the factory to suit your exact machine and riding application.
• USD or Conventional forks: Adaptability to install into almost any fork.
